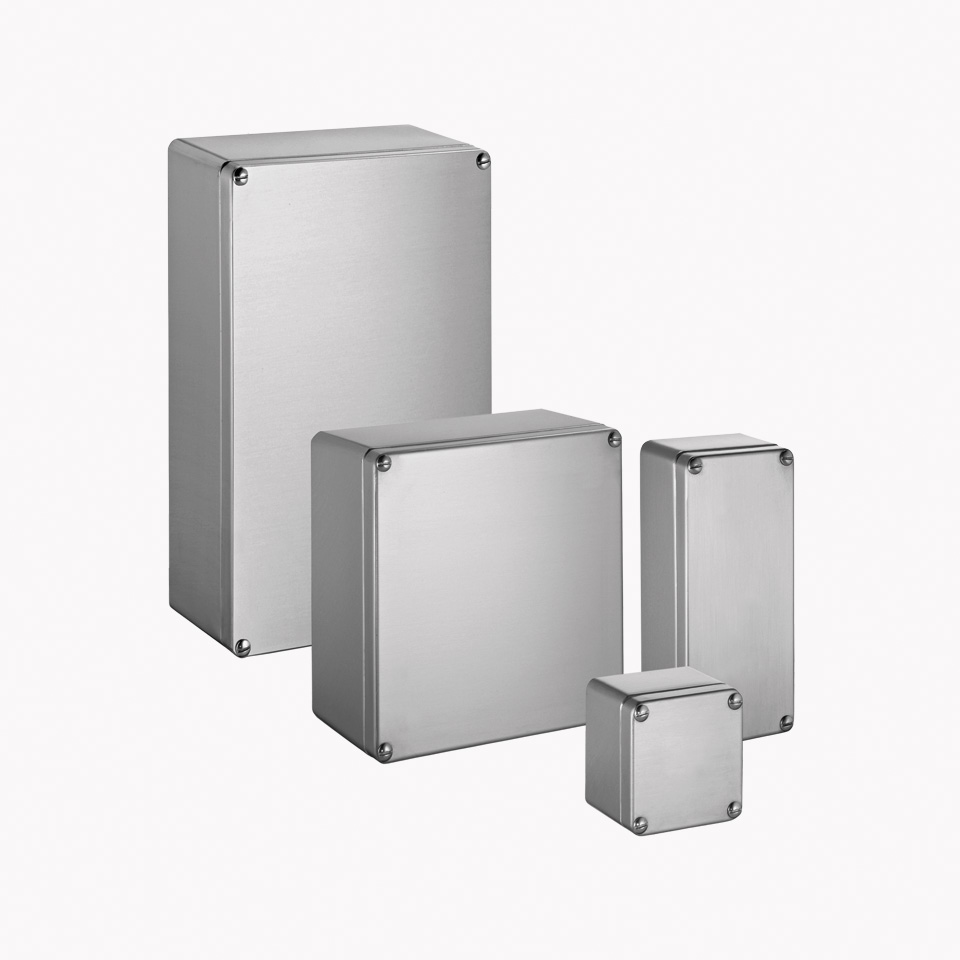

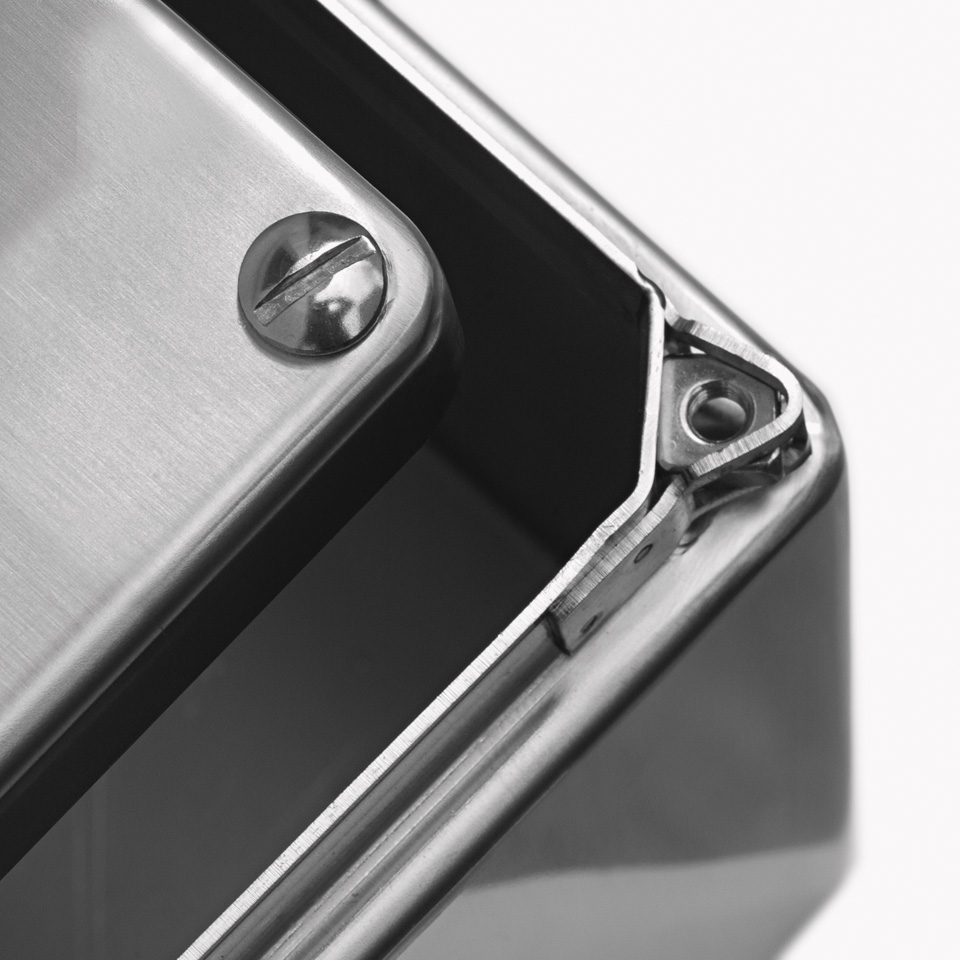

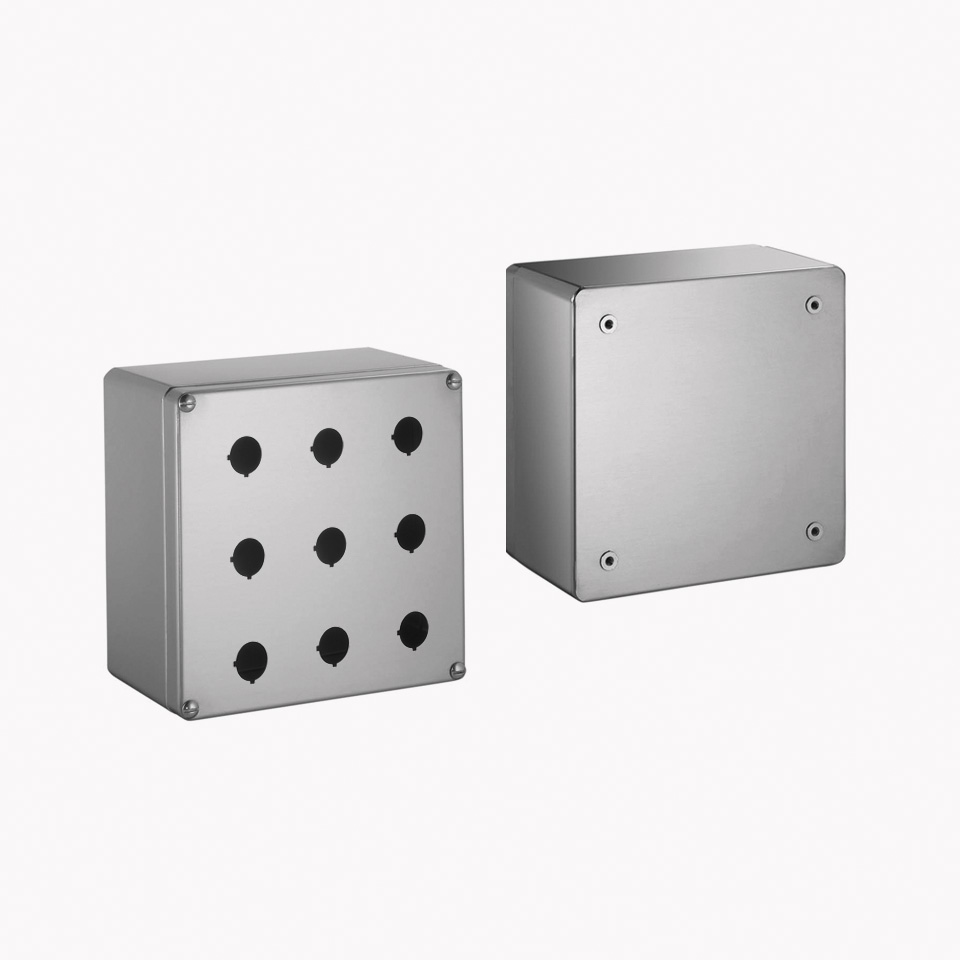

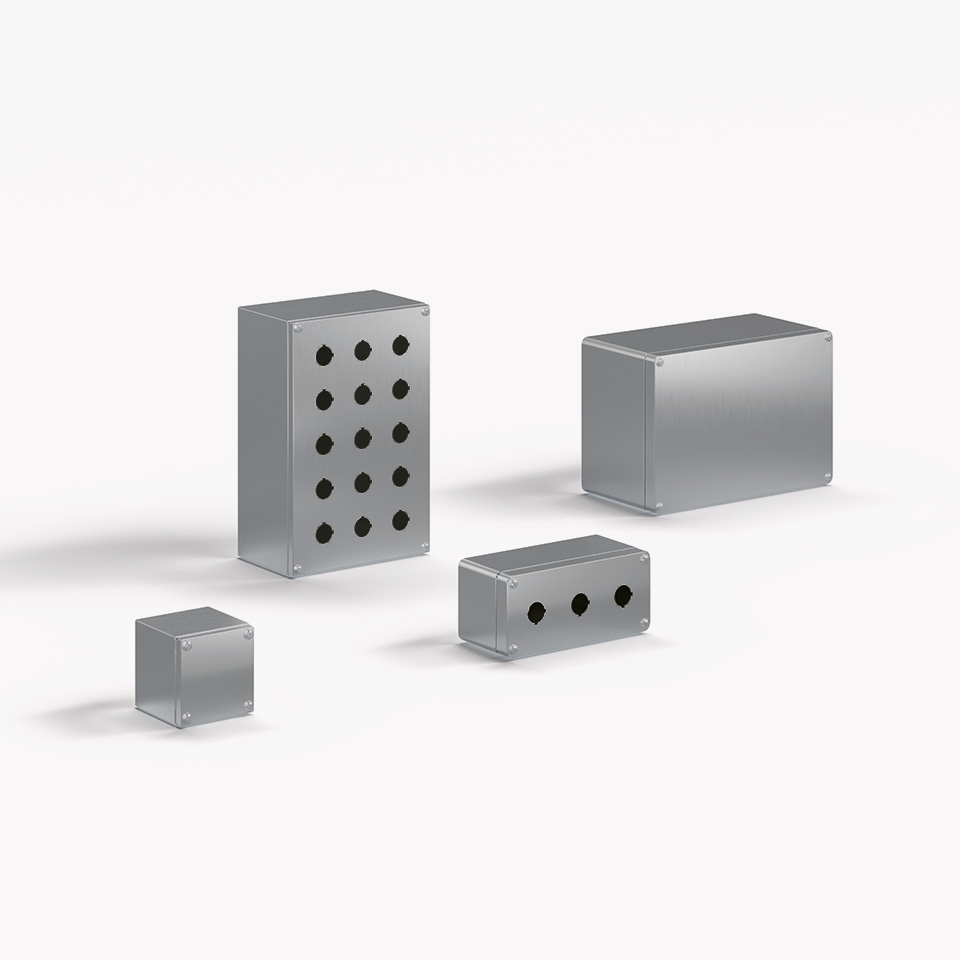

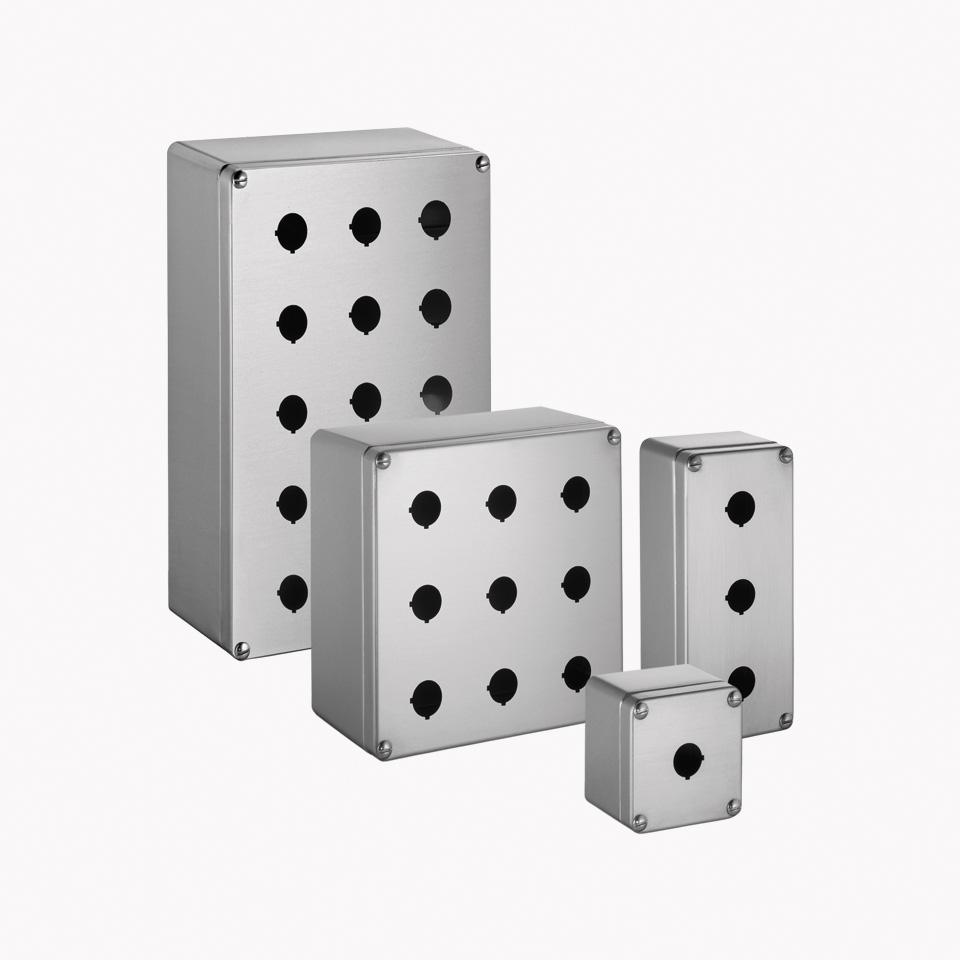

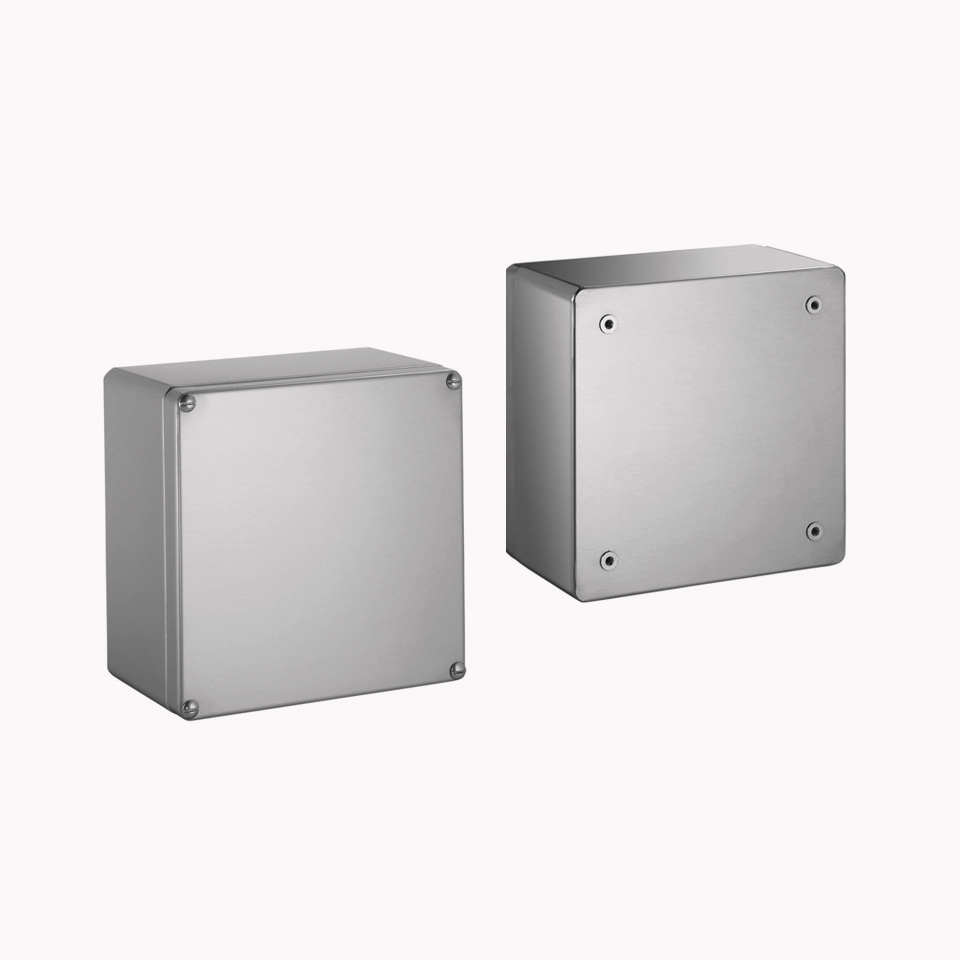

Premium Boxes
Junction Boxes (CD, CDE)
Control Panels (CP, CPE)
Stainless steel junction boxes and control panels with a scotch-brite finish, 1.2 mm thickness, particularly suitable for use in critical, atmospheric, hygienic, corrosive, and toxic environments. Suitable for temperatures ranging from -40 °C to +80 °C (CDE and CPE) and from -50 °C to +180 °C (CD and CP).
Materials
Stainless Steel:
AISI 304 EN 1.4301 or AISI 316L EN 1.4404
Foam Gasket:
Silicone (Fermasil A-93-1- VP3-Grey) or Polyurethane (Fermapor K31-A9230-2-VP)
Dimensions
Widths (mm):
90 - 150 - 200 - 300 - 400
Heights (mm):
90 - 150 - 200 - 300 - 400 - 550
Depths (mm):
90 - 120 - 150

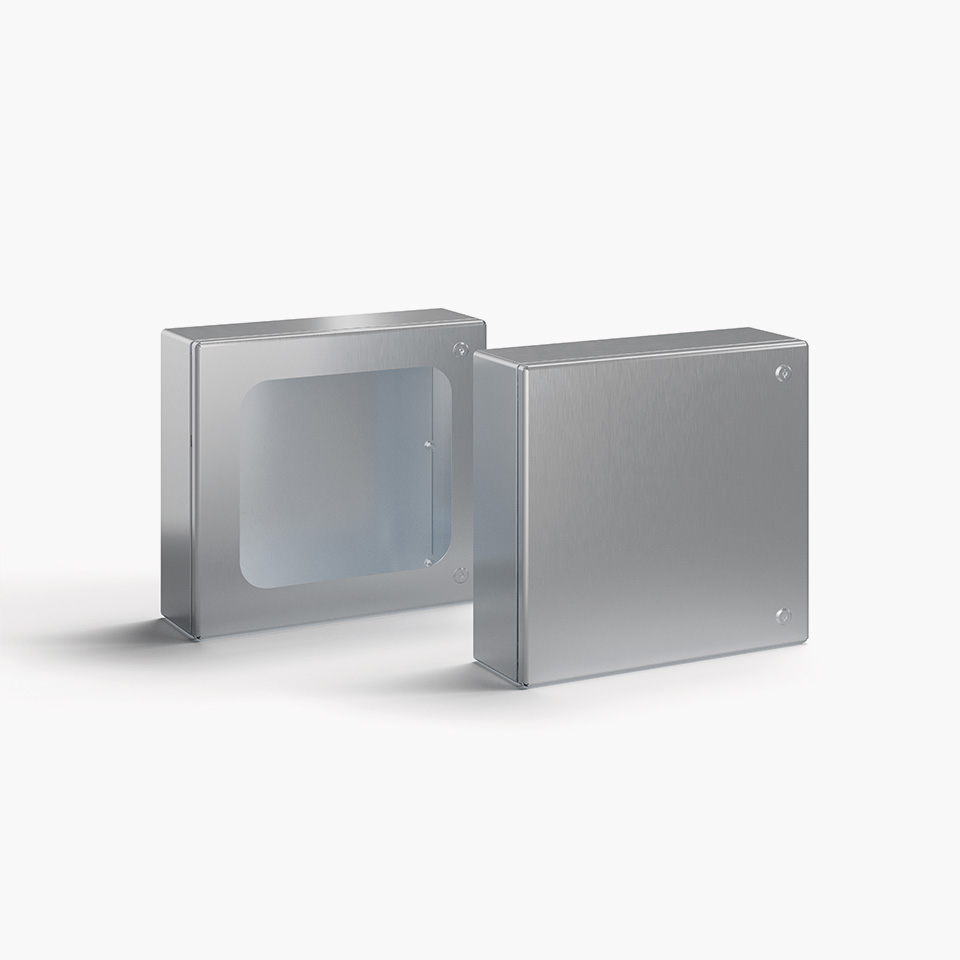

Premium Enclosures
Blind door enclosures (QN) and Lexan door enclosures (QL),
enclosures with a sloping roof (QH), control units (PC)
Stainless steel enclosures with a scotch-brite finish and thickness ranging from 1.2 mm to 1.5 mm, particularly suitable for use in critical, atmospheric, hygienic, corrosive, and toxic environments. The doors are reversible with a 180° opening. Hidden hinges in AISI 316 steel investment casting. Double-latch closures with key. Suitable for temperatures from -50°C to +180°C.
Materials
Stainless Steel:
AISI 304 EN 1.4301 o AISI 316L EN 1.4404
Foam Gasket:
Silicone (Fermasil A-93-1- VP3-Grey) or polyurethane upon request
Dimensions
Widths (mm):
200 - 300 - 400 - 500 - 600 - 800 - 1000 - 1200
Heights (mm):
300 - 400 - 450 - 500 - 600 - 700 - 750 - 800 - 900 - 1000 - 1200 - 1400 - 1600
Depths (mm):
150 - 210 - 250 - 300 - 400

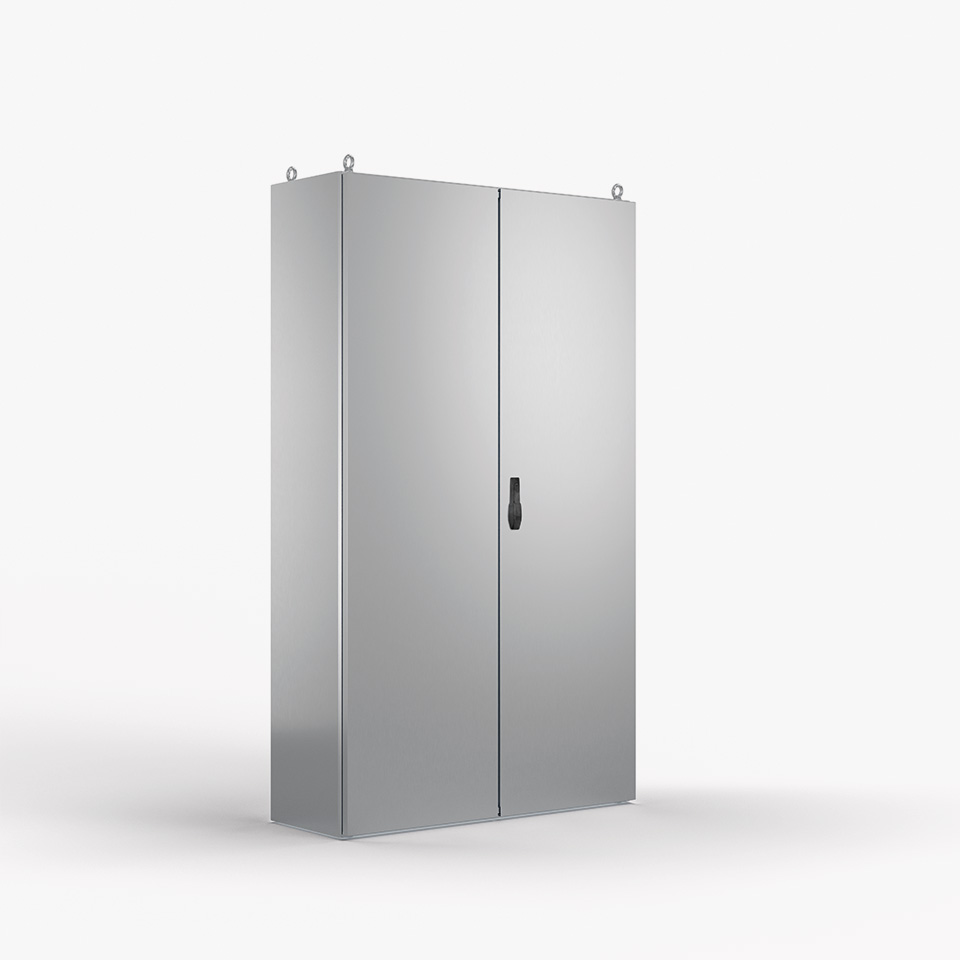

Premium Cabinets
Compact blind door cabinets (AN) and modular (MN) Compact Lexan door cabinets (AL) and modular (ML), Consoles (LG)
Stainless steel cabinets with a 1.5mm Scotch-Brite finish, featuring blind or Lexan doors on hinges with a 110° opening. The basic closure system includes a concealed swivel handle with a double-latch insert. Customizable in terms of perforations and accessories. Suitable for temperatures ranging from -40°C to +80°C.
Materials
Stainless Steel:
AISI 304 EN 1.4301 or AISI 316L EN 1.4404
Foam Gasket:
Polyurethane (Fermapor K31-A9230-2-VP) or silicone upon request
Dimensions
Widths (mm):
Single doors: 600 - 800 - 1000 | Double doors: 1200 - 1400 - 1600
Heights (mm):
1800 - 2000 - 2200
Depths (mm):
400 - 500 - 1000

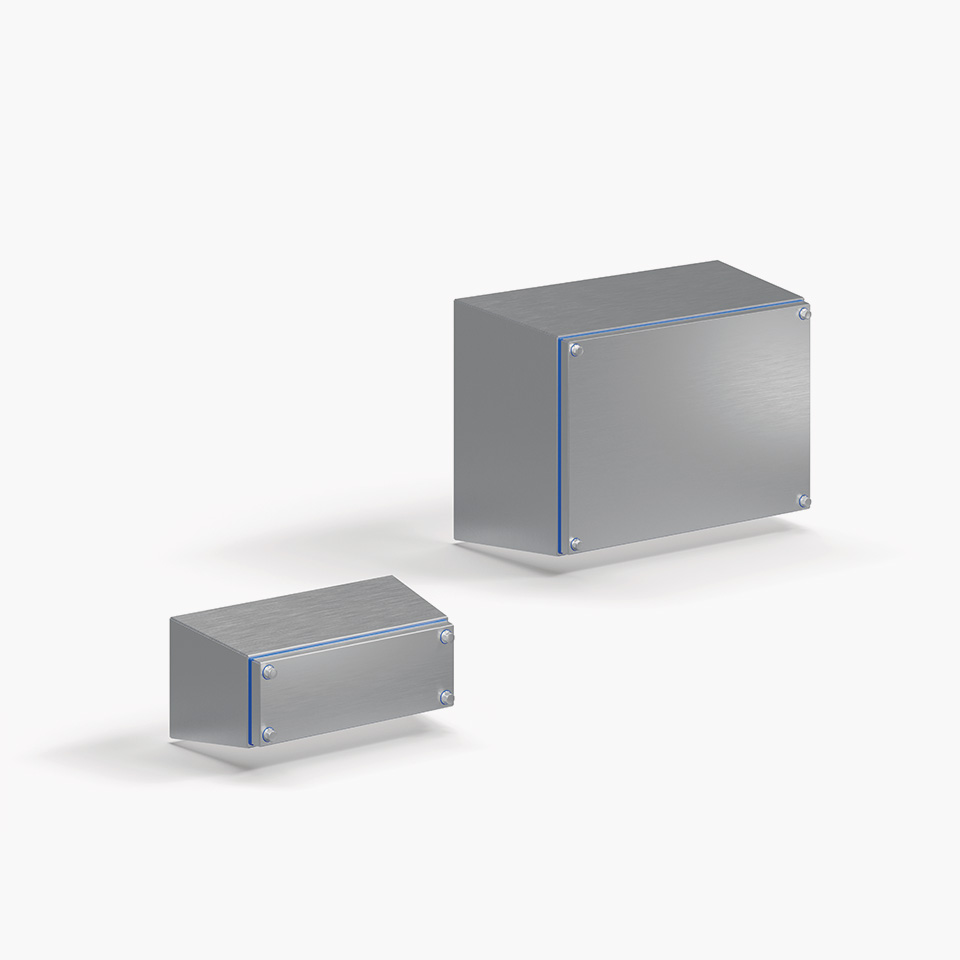

Hygienic Boxes
Junction Boxes (HD)
Stainless steel junction boxes with a Scotch-Brite finish, 1.2mm thickness, suitable for applications in sectors requiring stringent hygiene standards. The profile inclination (minimum of 3°) is specifically designed to facilitate cleaning operations and is FDA compliant. These boxes are suitable for temperatures ranging from -50°C to +180°C.
Materials
Stainless Steel:
AISI 304 EN 1.4301 or AISI 316L EN 1.4404
Gasket:
External silicone in blue color
Dimensions
Widths (mm):
90 - 150 - 200 - 300 - 400
Heights (mm):
90 - 150 - 200 - 300 - 400
Depths (mm):
90 - 120 - 150

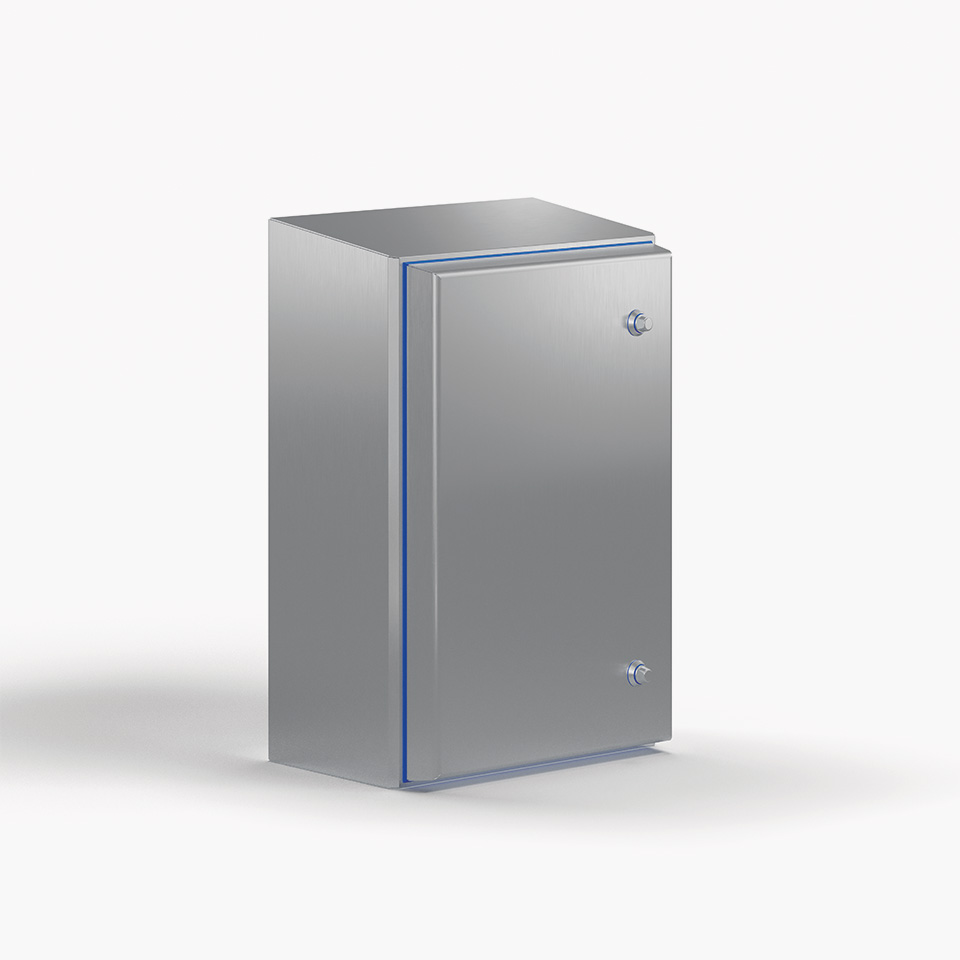

Hygienic Enclosures
Blind door enclosures (HQ)
Stainless steel enclosures with a Scotch-Brite finish, 1.2mm thickness, suitable for applications in sectors requiring stringent hygiene standards. The profile inclination (minimum of 3°) is specifically designed to facilitate cleaning operations and complies with FDA regulations. Suitable for temperatures ranging from -50°C to +180°C.
Materials
Stainless Steel:
AISI 304 EN 1.4301 o AISI 316L EN 1.4404
Gasket:
External silicone in blue color
Dimensions
Widths (mm):
200 - 300 - 400 - 500 - 600 - 800 - 1000 - 1200 - 1400
Heights (mm):
300 - 400 - 450 - 500 - 600 - 700 - 750 - 800 - 900 - 1000 - 1200
Depths (mm):
210 - 250 - 300 - 400

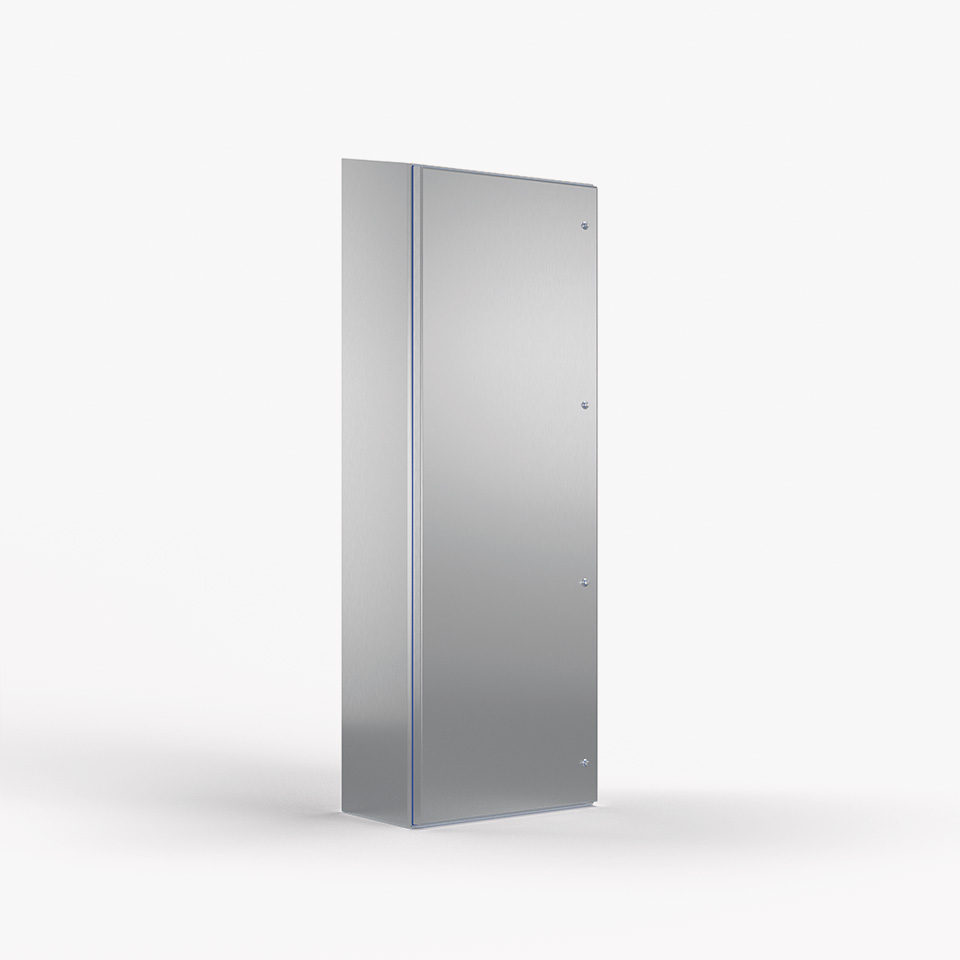

Hygienic Cabinets
Compact cabinets (HA)
Compact stainless steel cabinets with a Scotch-Brite finish, 1.5mm thickness, suitable for applications in sectors requiring stringent hygiene standards. The profile inclination (minimum of 3°) is specifically designed to facilitate cleaning operations and complies with FDA regulations. Suitable for temperatures ranging from -50 °C to +180 °C.
Materials
Stainless Steel:
AISI 304 EN 1.4301 o AISI 316L EN 1.4404
Gasket:
External silicone in blue color
Dimensions
Widths (mm):
Single doors: 600 - 800 - 1000 - 1200 | Double doors: 1200
Heights (mm):
1800 - 2000
Depths (mm):
400 - 500 - 600

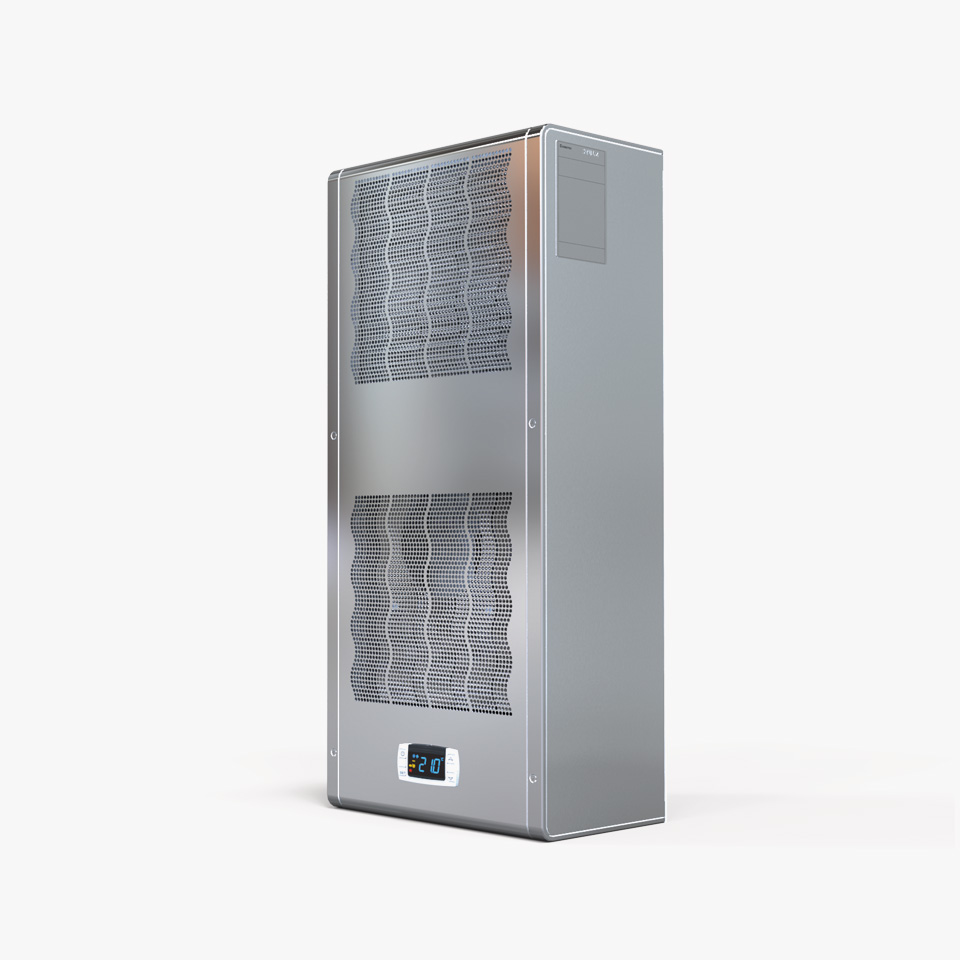

Air Conditioners
Protherm Series, Compact Protherm Series, Slim-in Series, Top Series
Air conditioners for electrical enclosures for both Indoor and Outdoor applications. Cooling capacities ranging from 300 to 3000 W. With the introduction of new components and the SEM and SEM2 logics, energy savings of up to 23% are achieved compared to previous models, coupled with an increase in the cooling power of the air conditioner.

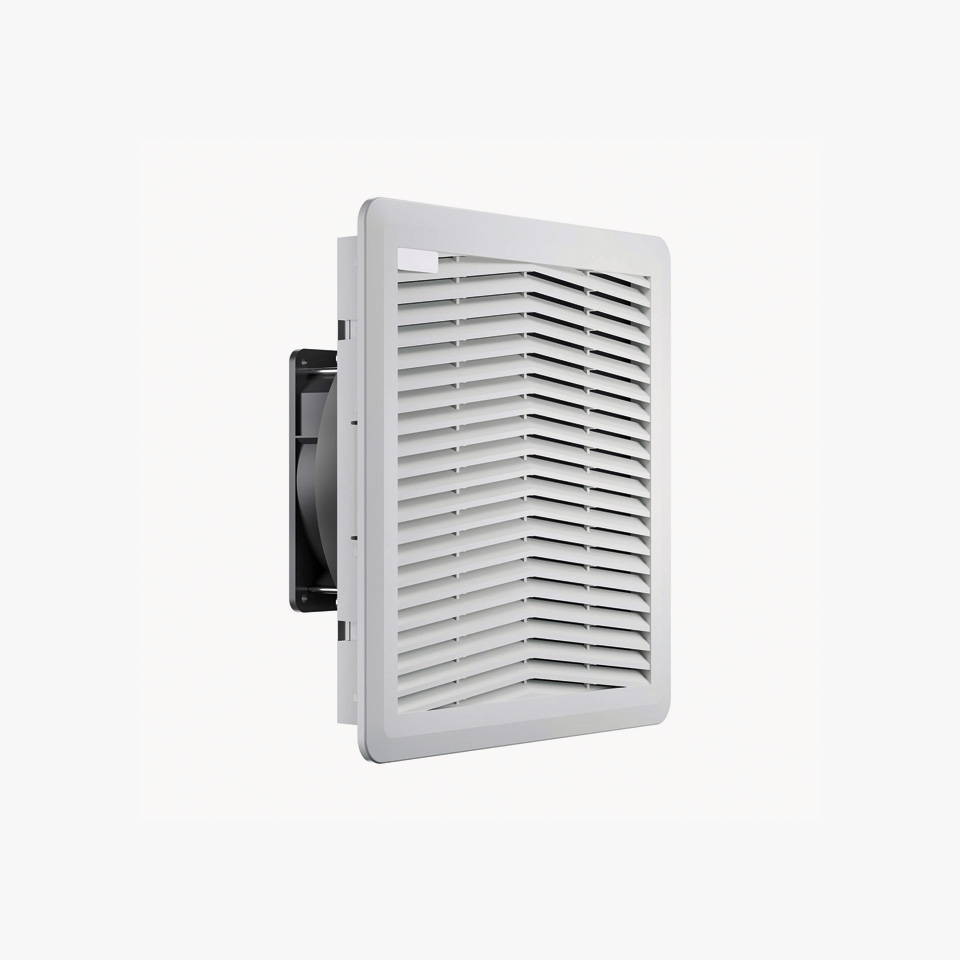

Ventilation Systems
Filter group, roof extractor towers, protective hood
Modern design, minimal dimensions, and ease of installation are the characteristics of our ventilation products. Filter units with and without fans, made of self-extinguishing ABS RAL 7035, adopt a snap-on fixing system without the use of screws. The range is completed by accessories such as stainless steel cover grilles and protective hoods.
